ai-structure.com剪力墙结构梁自动设计功能更新(20230329)
https://ai-structure.com为建筑结构生成式智能设计系统，现阶段可以根据建筑平面设计图，自动完成剪力墙结构的生成式智能设计（包括剪力墙的布置、梁的布置等）。StructGAN-v0.0.3的内测版已于2023年2月底上线。
在约一个月的测试过程中，感谢各位工程师的积极参与和反馈，针对大家反馈的意见和问题我们也进行了回复，并且更新和完善了系统。本次简报将对本周更新的梁自动布置功能进行介绍。
1
程序更新
（1）20230309更新：对使用说明中建筑空间图层名的提取说明进行了更新，对应部分程序也进行了更新。
（2）20230329更新：对剪力墙设计-后处理-梁构件自动生成模块进行了更新，调整了梁自动生成策略，可更合理的生成梁布置。
2
剪力墙结构梁自动设计最新效果

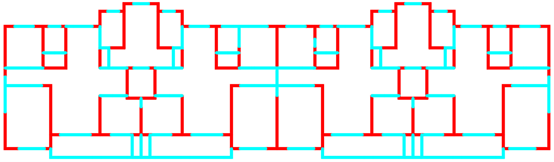

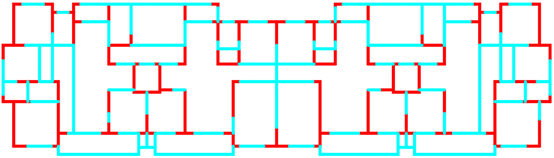

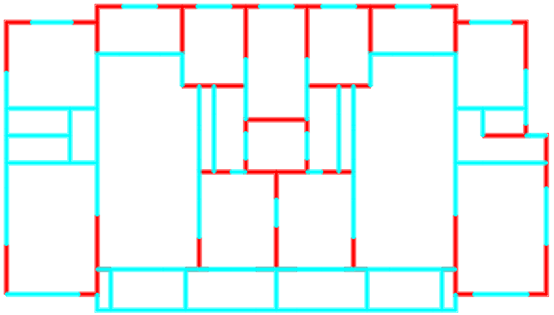

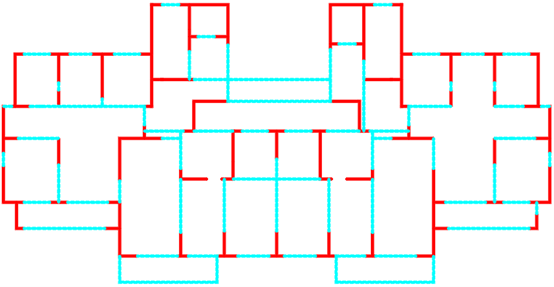

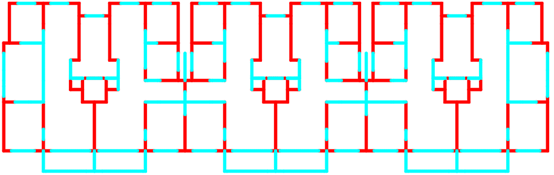

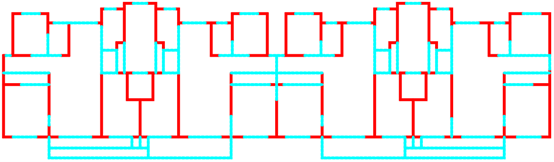

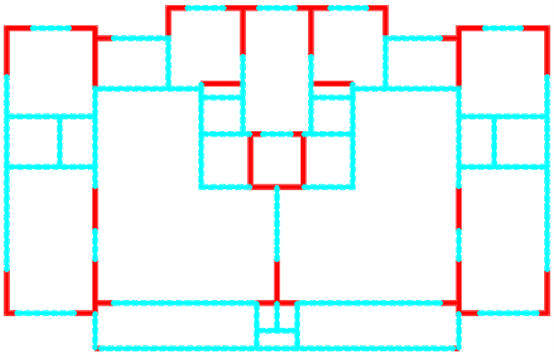

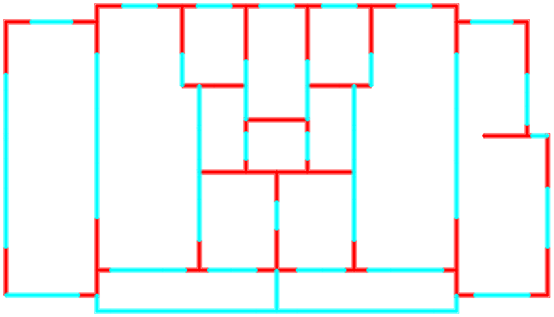

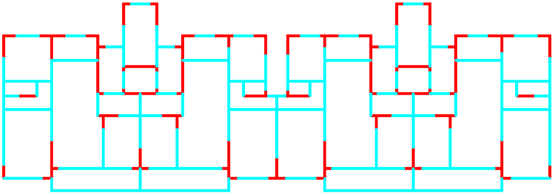

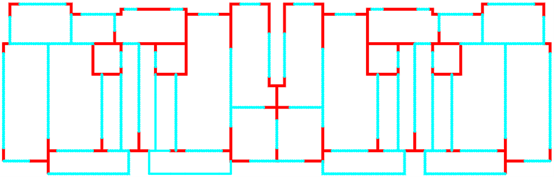

采用ai-structure QQ群（群号：741840451）共享资料文件中“4.examples-10个典型案例数据-20230216”的案例进行展示。图中，红色线段为剪力墙，蓝色线段为梁。

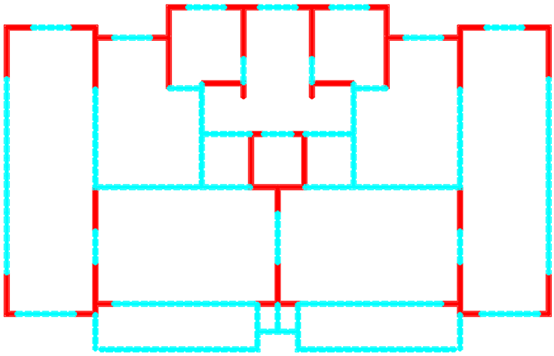

（1）天正：test1_t6.dwg
更新前

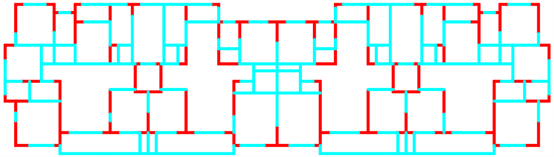

更新后

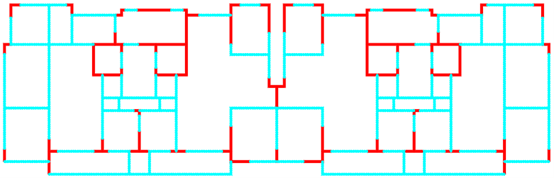

（2）天正：test2_t6.dwg

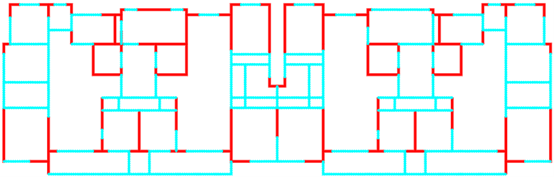

更新前

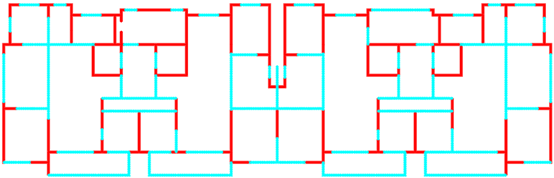

更新后
（3）天正：test3_t6.dwg
更新前

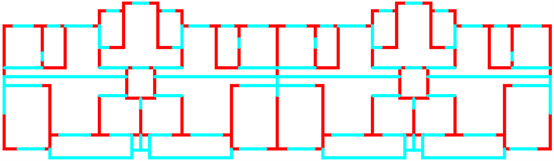

更新后
（4）天正：test4_t6.dwg
更新前

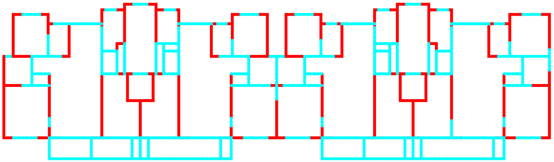

更新后
（5）天正：test5_t6.dwg
更新前

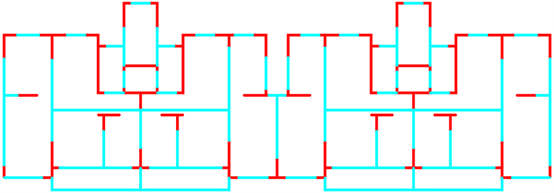

更新后
（6）天正：test6_t6.dwg
更新前
更新后
（7）天正：test7_t6.dwg
更新前
更新后
（8）天正：test8_t6.dwg
更新前
更新后
（9）天正：test9_t6.dwg
更新前
更新后
（10）天正：test10_t6.dwg
更新前
更新后
ai-structure.com系统和程序往期文章
联系方式
QQ群：741840451（欢迎入群交流讨论）
廖文杰：[email protected]；
ai-structure.com网站中也有联系我们选项，欢迎试用

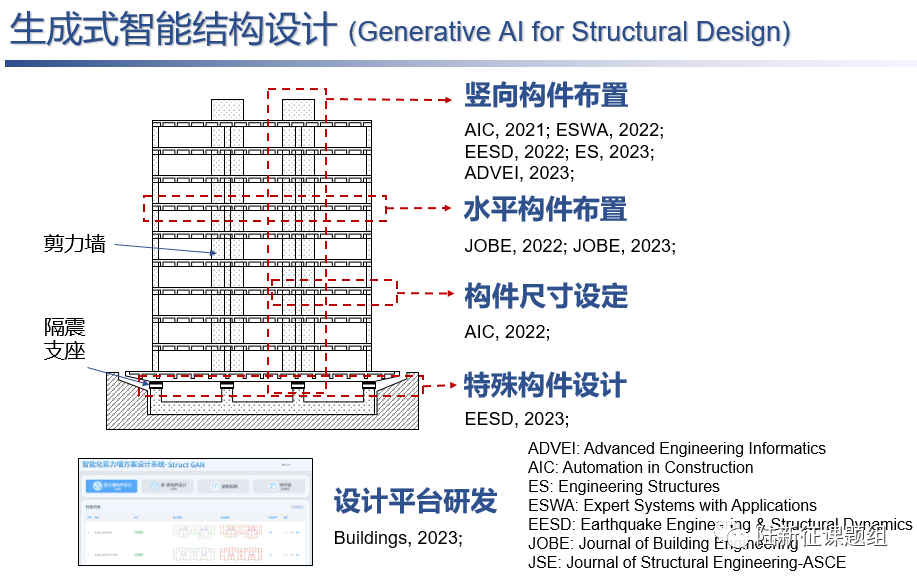

相关论文
Liao WJ, Lu XZ, Huang YL, Zheng Z, Lin YQ, Automated structural design of shear wall residential buildings using generative adversarial networks, Automation in Construction, 2021, 132, 103931. DOI: 10.1016/j.autcon.2021.103931.
Lu XZ, Liao WJ, Zhang Y, Huang YL, Intelligent structural design of shear wall residence using physics-enhanced generative adversarial networks, Earthquake Engineering & Structural Dynamics, 2022, 51(7): 1657-1676. DOI: 10.1002/eqe.3632.
Zhao PJ, Liao WJ, Xue HJ, Lu XZ, Intelligent design method for beam and slab of shear wall structure based on deep learning, Journal of Building Engineering, 2022, 57: 104838. DOI: 10.1016/j.jobe.2022.104838.
Liao WJ, Huang YL, Zheng Z, Lu XZ, Intelligent generative structural design method for shear-wall building based on “fused-text-image-to-image” generative adversarial networks, Expert Systems with Applications, 2022, 118530, DOI: 10.1016/j.eswa.2022.118530.
Fei YF, Liao WJ, Zhang S, Yin PF, Han B, Zhao PJ, Chen XY, Lu XZ, Integrated schematic design method for shear wall structures: a practical application of generative adversarial networks, Buildings, 2022, 12(9): 1295. DOI: 10.3390/buildings1209129.
Fei YF, Liao WJ, Huang YL, Lu XZ, Knowledge-enhanced generative adversarial networks for schematic design of framed tube structures, Automation in Construction, 2022, 144: 104619. DOI: 10.1016/j.autcon.2022.104619.
Zhao PJ, Liao WJ, Huang YL, Lu XZ, Intelligent design of shear wall layout based on attention-enhanced generative adversarial network, Engineering Structures, 2023, 274, 115170. DOI: 10.1016/j.engstruct.2022.115170.
Zhao PJ, Liao WJ, Huang YL, Lu XZ, Intelligent beam layout design for frame structure based on graph neural networks, Journal of Building Engineering, 2023, 63, Part A: 105499. DOI: 10.1016/j.jobe.2022.105499.
Zhao PJ, Liao WJ, Huang YL, Lu XZ, Intelligent design of shear wall layout based on graph neural networks, Advanced Engineering Informatics, 2023, 55, 101886, DOI: 10.1016/j.aei.2023.101886
Liao WJ, Wang XY, Fei YF, Huang YL, Xie LL, Lu XZ*, Base-isolation design of shear wall structures using physics-rule-co-guided self-supervised generative adversarial networks, Earthquake Engineering & Structural Dynamics, 2023, DOI:10.1002/eqe.3862.
