RED-ACT: Feb. 19, M4.5 Japan Nagano-ken Earthquake
RED-ACT Report
Real-time Earthquake Damage Assessment using City-scale Time-history analysis
Feb. 19, M4.5 Japan Nagano-ken Hokubu Earthquake
Research group of Xinzheng Lu at Tsinghua University ([email protected])
First reported at 20:45, Feb. 19, 2019 (Beijing Time, UTC +8)
Acknowledgments and Disclaimer
The authors are grateful for the data provided by K-NET and KiK-net. This analysis is for research only. The actual damage resulting from the earthquake should be determined according to the site investigation.
1. Introduction to the earthquake event
At 21: 04, Feb. 19, 2019 (Local Time, UTC +9), an M 4.5 (JMA) earthquake occurred in Nagano-ken Hokubu. The epicenter was located at 137.7E 36.5N, with a depth of 10.0 km.
2. Recorded ground motions
7 ground motions near to epicenter of this earthquake were analyzed. The names and locations of the stations can be found Table 1. The maximal recorded peak ground acceleration (PGA) is 28 cm/s/s. The corresponding response spectra in comparison with the design spectra specified in the Chinese Code for Seismic Design of Buildings are shown in Figure 1.

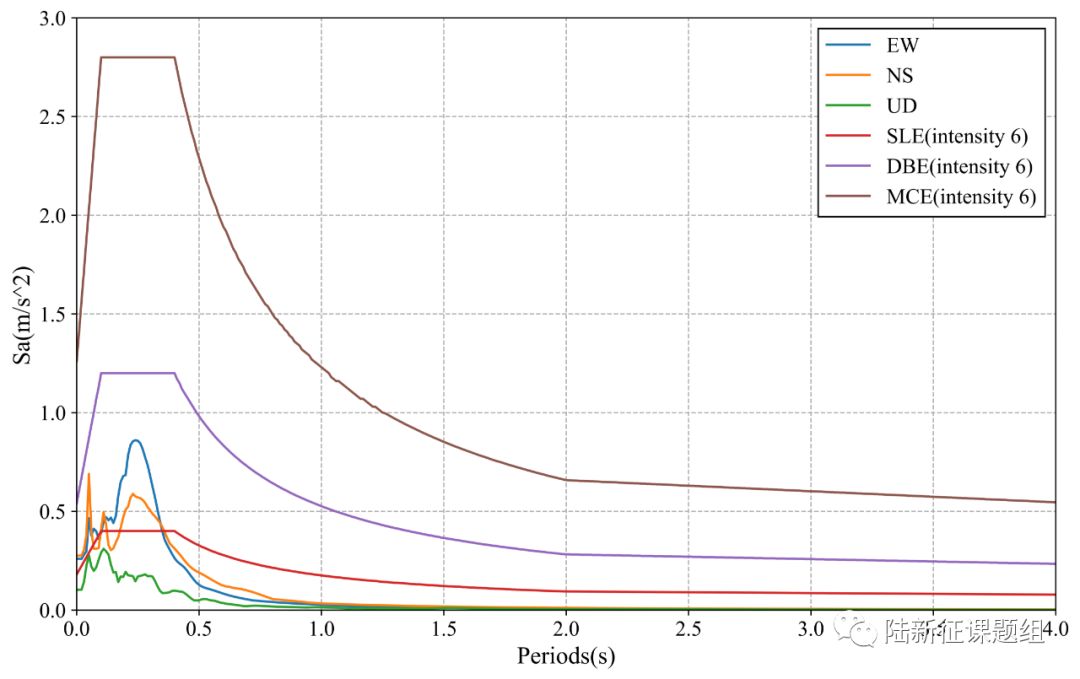

Figure 1 Response spectra of the recorded ground motions with maximal PGA
3. Damage analysis of the target region subjected to the recorded ground motions
Using the real-time ground motions obtained from the strong motion networks and the city-scale nonlinear time-history analysis (see the Appendix of this report), the damage ratios of buildings located in different places can be obtained. The building damage distribution and the human uncomfortableness distribution near to different stations is shown in Figure 2 and Figure 3, respectively. These outcomes can provide a reference for post-earthquake rescue work.

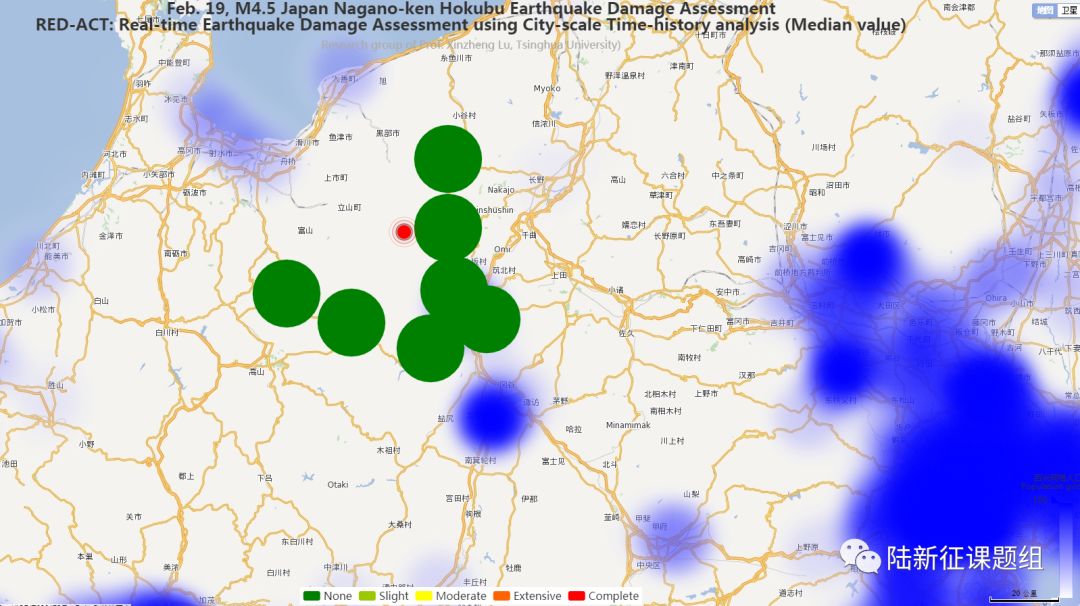

Figure 2 Damage ratio distribution of the buildings near to different stations

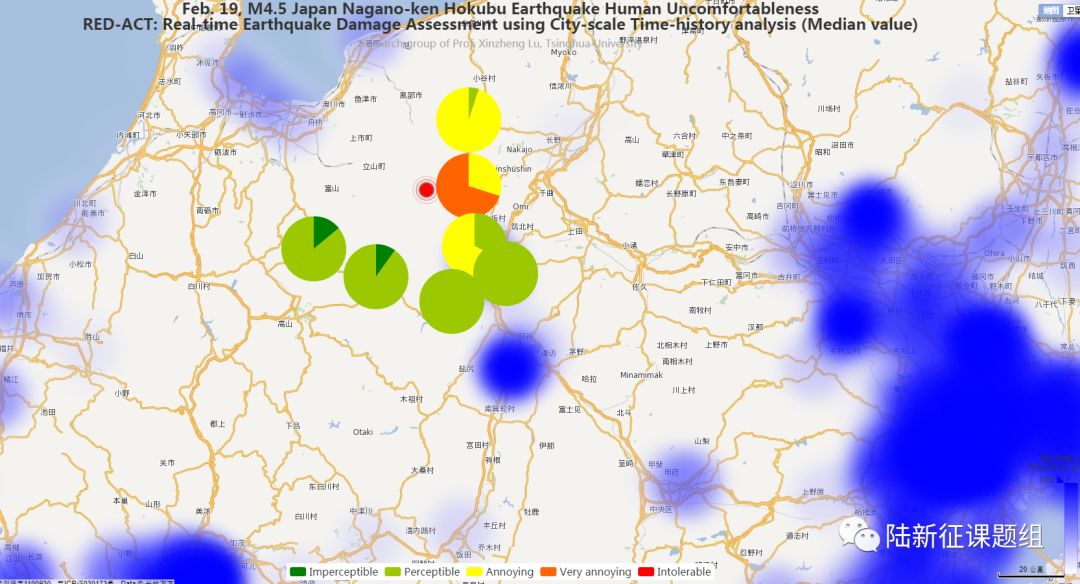

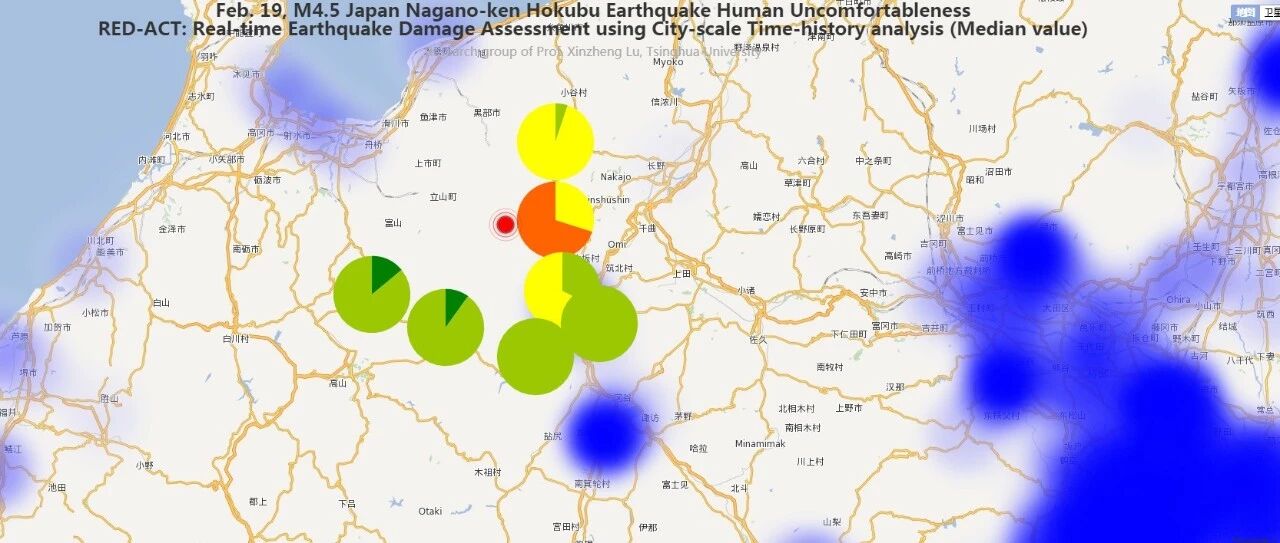

Figure 3 Human uncomfortableness distribution near to different stations
The details can be accessed at
http://www.luxinzheng.net/software/2019-02-19-Japan-4.5.html
http://www.luxinzheng.net/software/2019-02-19-Japan-4.5-Acc.html
Table 1 Names and locations of the strong motion stations
No. Station Name Longitude Latitude
1 GIF003 137.301 36.3322
2 GIF004 137.517 36.2492
3 NGN005 137.854 36.6981
4 NGN006 137.851 36.5086
5 NGN009 137.869 36.3378
6 NGN012 137.978 36.2564
7 NGN013 137.785 36.1833
------End------
