引言

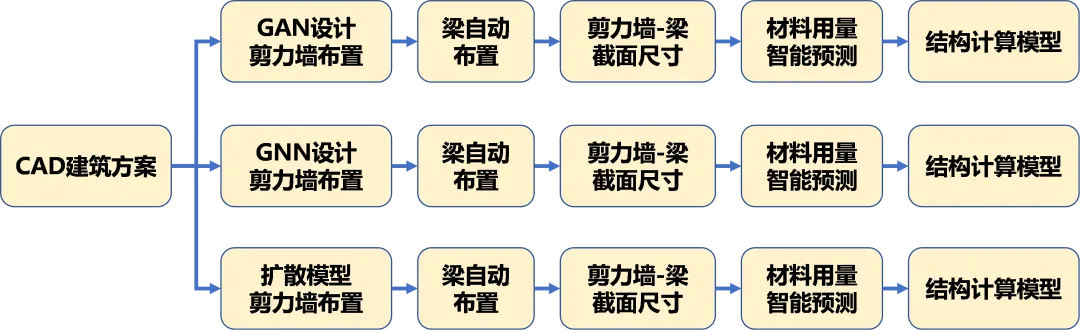

蛇年伊始，我们隆重推出AIstructure-Copilot-V0.3.3版本，该版本新增非正交复杂建筑布局设计功能，欢迎大家试用。
一分钟视频介绍
1
非正交复杂平面的剪力墙结构设计

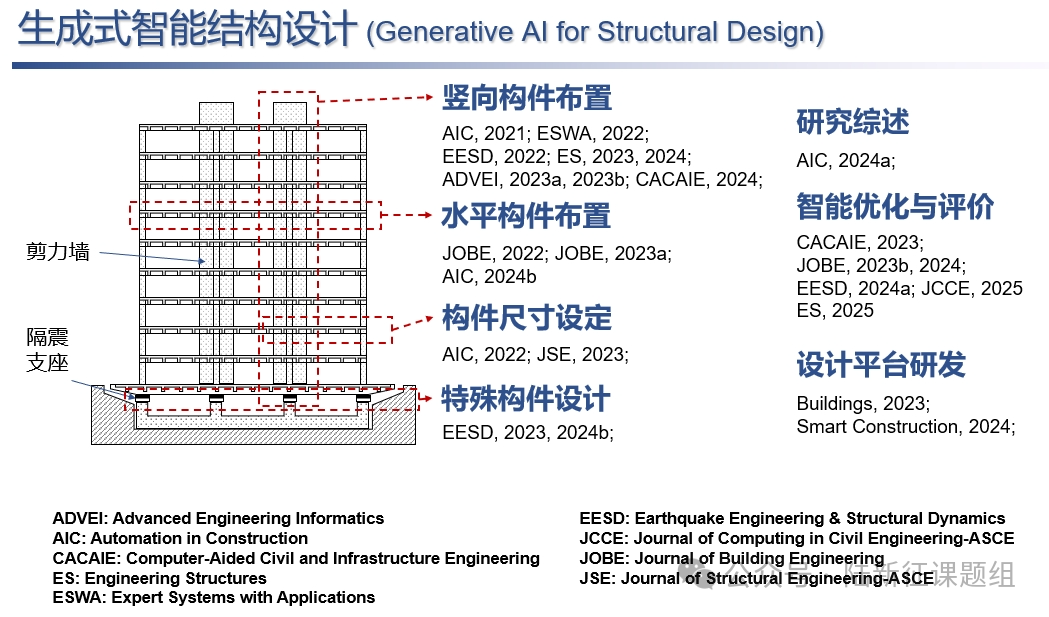

在AIstructure-Copilot研发初期，我们遇到的设计案例大多是比较规则的建筑平面，其墙体和构件布置都是横平竖直的正交布置（图1），我们针对这样的平面布置也取得了较好的设计效果。

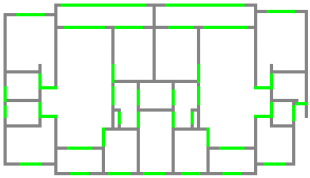

（a）建筑设计图

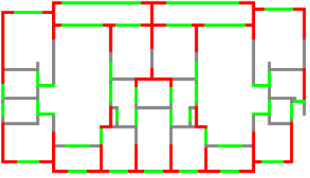

（b）结构设计图
图1 墙体和构件都是正交布置的设计案例
但是，随着AIstructure-Copilot设计工程量的增多，很多用户反映在我国南方地区，建筑平面通常是由正交构件和非正交构件组成的较为复杂的布局，使用以往版本AIstructure-Copilot进行结构智能设计时表现不佳。于是，我们开发了可以实现非正交复杂楼面设计的新版本AIstructure-Copilot-V0.3.3，典型设计案例如下：
建筑平面布局如图2所示，该建筑是一个品字形布局，共18个自然层，抗震设防烈度为7度（0.15g）。

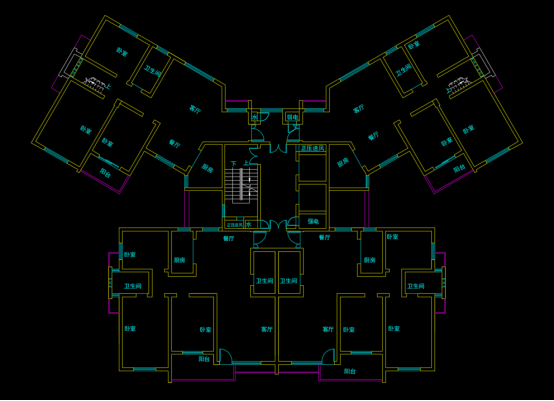

图2 品字形建筑平面图（平面尺寸33.6m×31.5m）
采用AIstructure-Copilot-V0.3.3版本进行结构智能设计，得到的设计结果如图3所示，可以看出AI可以很好的完成结构构件的布置。同时，我们将此布置结果导入PKPM进行力学性能的计算，计算结果如图4所示，可以看出AI的设计结果满足规范对力学性能的要求。
图3 智能设计效果（红色为剪力墙，蓝色为梁）

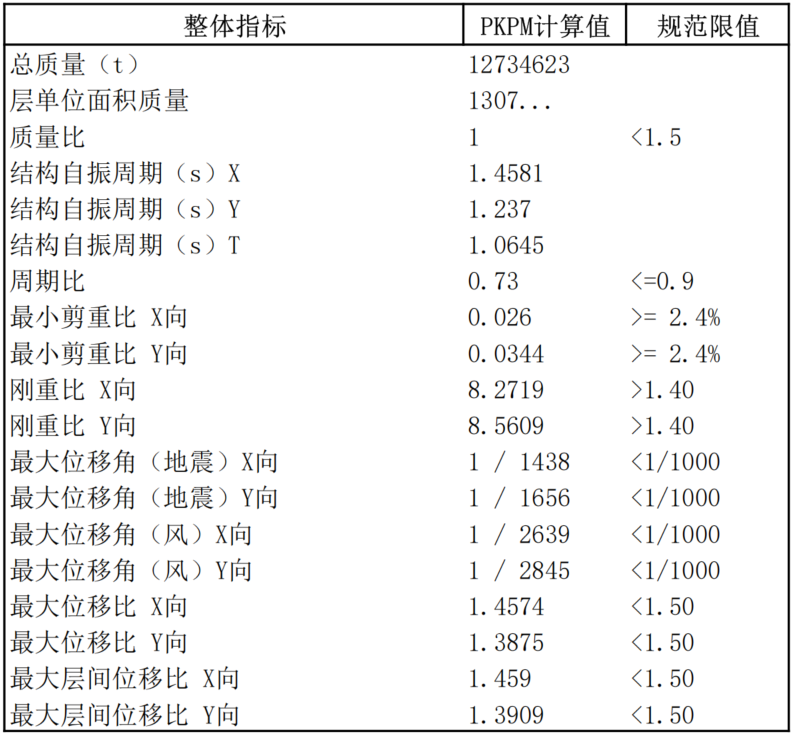

图4 结构力学性能指标
后续，我们还将不断完善相关产品功能。欢迎大家持续关注我们的工作，多多支持！
温馨提示：为更好使用AI设计工具，请仔细阅读使用说明书(https://ai-structure.com)。
QQ群，AI-structure-交流群：741840451
商务问题请联系：
黄盛楠([email protected])
技术问题请联系：
廖文杰([email protected])
