AIstructure-Copilot-v0.2.3：前处理与梁布置设计功能持续更新

原创廖文杰等陆新征课题组

2024年03月15日 15:46

功能简介

更新了Copilot的前处理功能，更好的提取建筑构件轴线，同时自动识别电梯和阳台等关键区域的建筑空间名称；并进一步提升梁布置设计的效果。

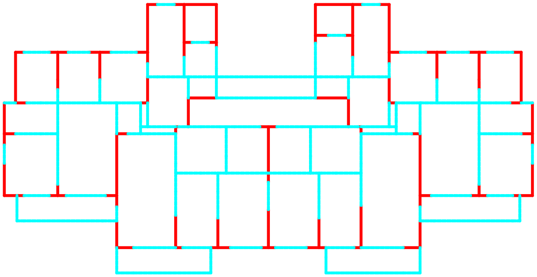

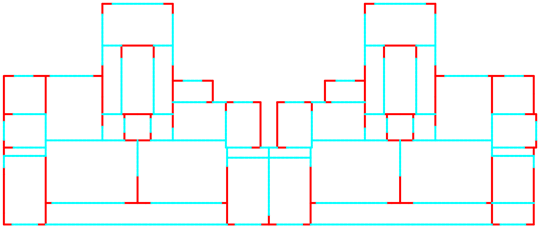

AIstructure自动提取的常规CAD中建筑构件轴线

（未经过人工调整）

前处理功能更新

用户反馈中提到：Copilot在前处理时，常规CAD图纸中部分短建筑墙难以提取对应轴线，需要提升建筑轴线提取精度；同时，能否直接读取CAD图纸中的既有文字，为建筑空间自动命名。

因此，我们改进了前处理算法，优化了轴线提取精度，实现了自动化文字提取。

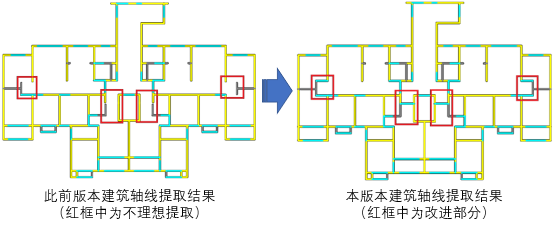

（1）前处理改进前后效果对比

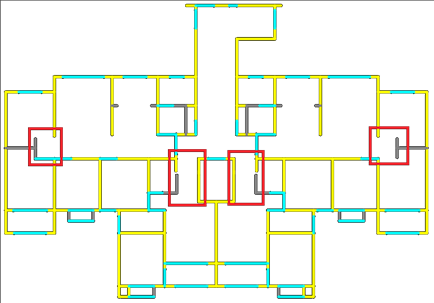

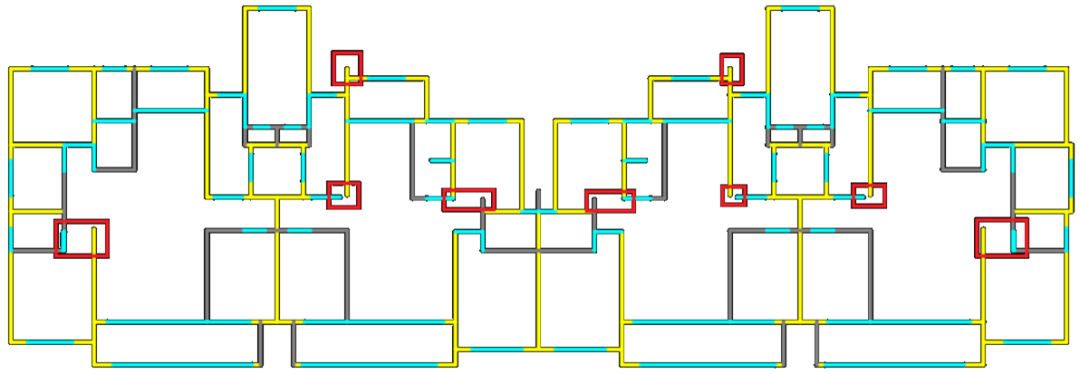

Test 1案例（此前版本提取结果）

Test 1案例（本版本提取结果）

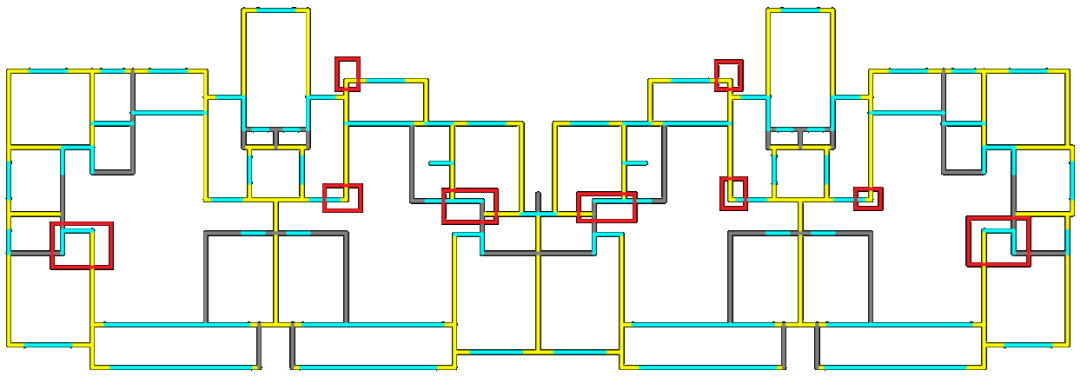

Test 2案例（此前版本提取结果）

Test 2案例（本版本提取结果）

Test 3案例（此前版本提取结果）

Test 3案例（本版本提取结果）

Test 4案例（此前版本提取结果）

Test 4案例（本版本提取结果）

（2）建筑空间功能自动提取

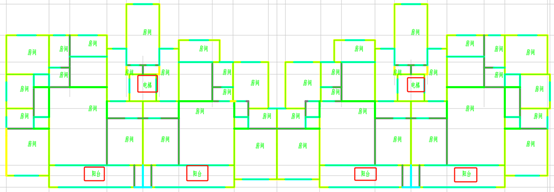

案例1，自动识别阳台和卫生间文字

案例2，自动识别阳台和电梯文字

梁布置设计功能更新

上周我们更新了梁布置的功能，本次持续进行了优化，做出了部分细节的调整。

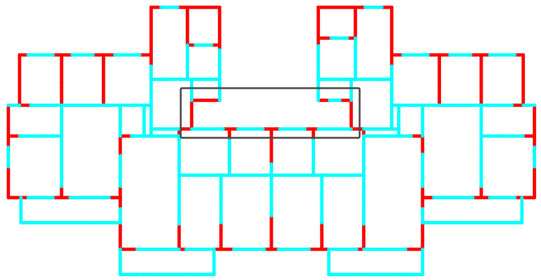

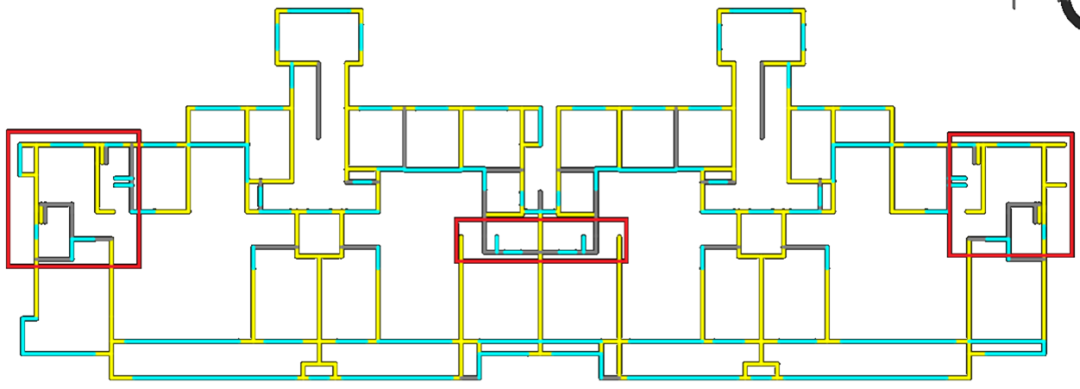

Test 2案例（此前版本设计结果，灰色框中为较不合理的布置）

Test 2案例（本版本设计结果）

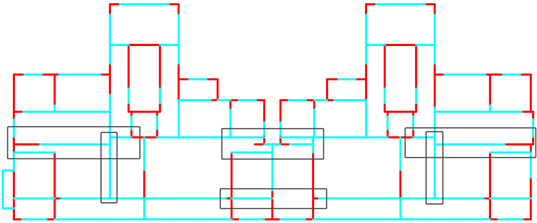

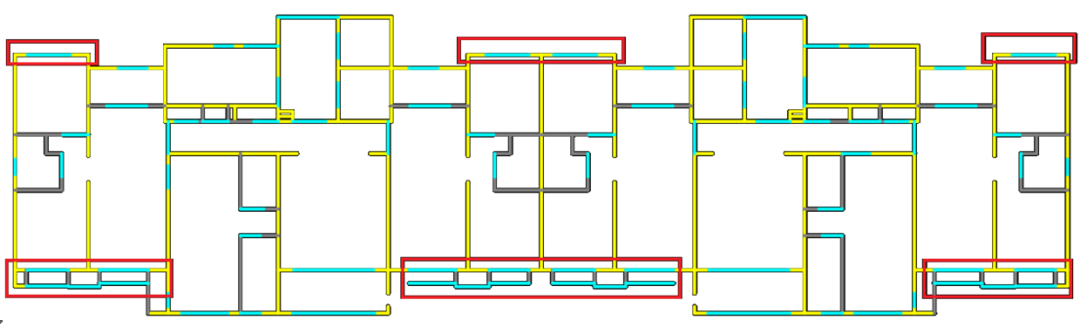

Test 6案例（此前版本设计结果，灰色框中为较不合理的布置）

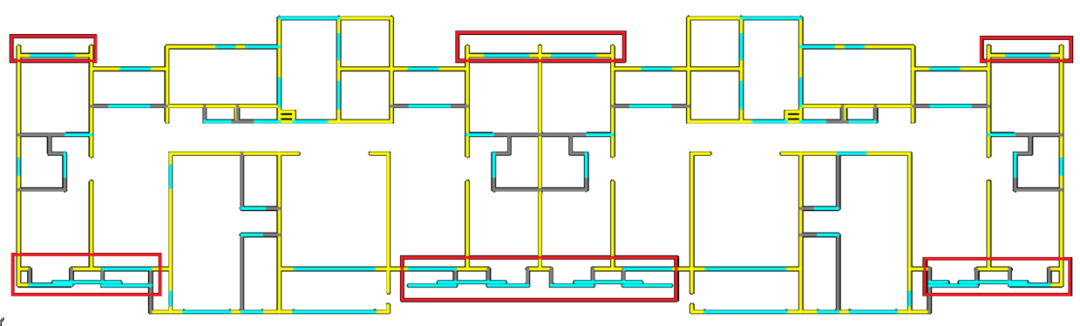

Test 6案例（本版本设计结果）

智能设计云平台使用提示

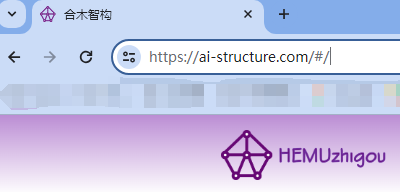

目前，为了保证网站的安全性，AIstructure平台采用的是https协议，正确网址为：https://ai-structure.com。

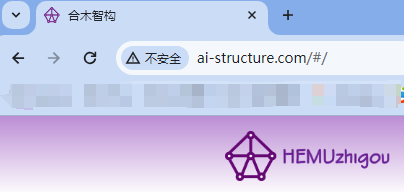

虽然http协议对应的网站同样能提供相应服务，但是浏览器会提示不安全，如下图所示，同时部分功能使用可能会遇到浏览器阻止的问题，如有问题，请大家先切换至https协议网站。

结语

我们更新了前处理建筑构件轴线提取、空间命名自动提取、优化梁布置生成功能，使得前处理更方便，梁布置更加合理。

后续，我们还将不断完善相关产品功能。欢迎大家持续关注我们的工作，多多支持！

温馨提示：为更好使用AI设计工具，请仔细阅读使用说明书。

5分钟视频演示智能设计操作全流程

联系方式

QQ群，AI-structure-交流群：741840451

黄盛楠：[email protected]

廖文杰：[email protected]

ai-structure.com往期文章

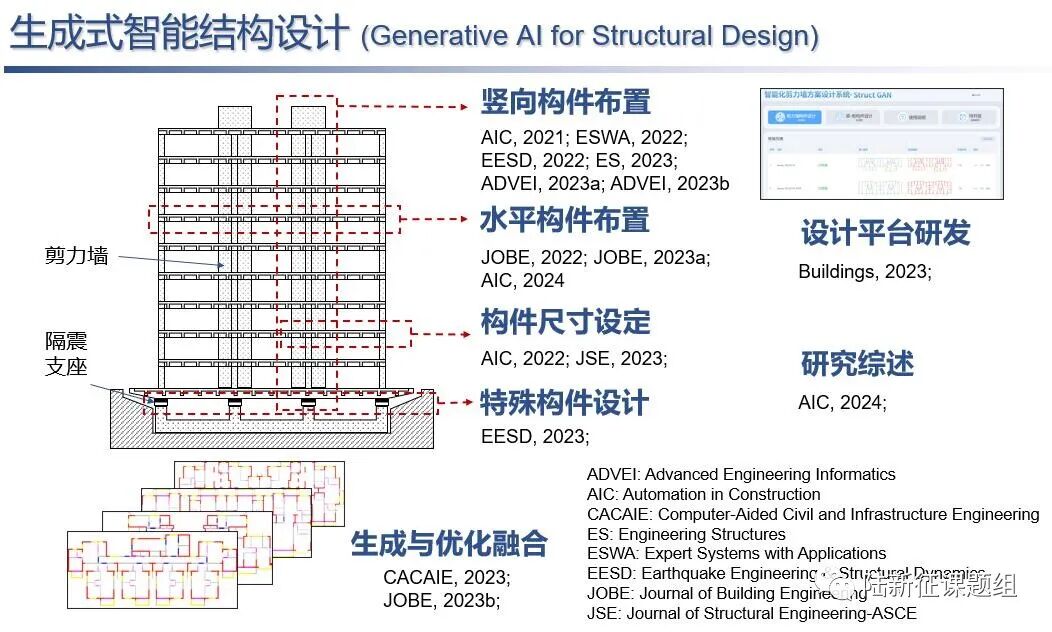

相关论文

Liao WJ, Lu XZ, Huang YL, Zheng Z, Lin YQ, Automated structural design of shear wall residential buildings using generative adversarial networks, Automation in Construction, 2021, 132, 103931. DOI: 10.1016/j.autcon.2021.103931.
Lu XZ, Liao WJ, Zhang Y, Huang YL, Intelligent structural design of shear wall residence using physics-enhanced generative adversarial networks, Earthquake Engineering & Structural Dynamics, 2022, 51(7): 1657-1676. DOI: 10.1002/eqe.3632.
Zhao PJ, Liao WJ, Xue HJ, Lu XZ, Intelligent design method for beam and slab of shear wall structure based on deep learning, Journal of Building Engineering, 2022, 57: 104838. DOI: 10.1016/j.jobe.2022.104838.
Liao WJ, Huang YL, Zheng Z, Lu XZ, Intelligent generative structural design method for shear-wall building based on “fused-text-image-to-image” generative adversarial networks, Expert Systems with Applications, 2022, 118530, DOI: 10.1016/j.eswa.2022.118530.
Fei YF, Liao WJ, Zhang S, Yin PF, Han B, Zhao PJ, Chen XY, Lu XZ, Integrated schematic design method for shear wall structures: a practical application of generative adversarial networks, Buildings, 2022, 12(9): 1295. DOI: 10.3390/buildings1209129.
Fei YF, Liao WJ, Huang YL, Lu XZ, Knowledge-enhanced generative adversarial networks for schematic design of framed tube structures, Automation in Construction, 2022, 144: 104619. DOI: 10.1016/j.autcon.2022.104619.
Zhao PJ, Liao WJ, Huang YL, Lu XZ, Intelligent design of shear wall layout based on attention-enhanced generative adversarial network, Engineering Structures, 2023, 274, 115170. DOI: 10.1016/j.engstruct.2022.115170.
Zhao PJ, Liao WJ, Huang YL, Lu XZ, Intelligent beam layout design for frame structure based on graph neural networks, Journal of Building Engineering, 2023, 63, Part A: 105499. DOI: 10.1016/j.jobe.2022.105499.
Zhao PJ, Liao WJ, Huang YL, Lu XZ, Intelligent design of shear wall layout based on graph neural networks, Advanced Engineering Informatics, 2023, 55, 101886, DOI: 10.1016/j.aei.2023.101886
Liao WJ, Wang XY, Fei YF, Huang YL, Xie LL, Lu XZ*, Base-isolation design of shear wall structures using physics-rule-co-guided self-supervised generative adversarial networks, Earthquake Engineering & Structural Dynamics, 2023, DOI:10.1002/eqe.3862.
Feng YT, Fei YF, Lin YQ, Liao WJ, Lu XZ, Intelligent generative design for shear wall cross-sectional size using rule-Embedded generative adversarial network, Journal of Structural Engineering-ASCE, 2023, 149(11). 04023161. DOI:10.1061/JSENDH.STENG-12206.
Fei YF, Liao WJ, Lu XZ*, Guan H*, Knowledge-enhanced graph neural networks for construction material quantity estimation of reinforced concrete buildings, Computer-Aided Civil and Infrastructure Engineering, 2023, DOI: 10.1111/mice.13094.
Zhao PJ, Fei YF, Huang YL, Feng YT, Liao WJ, Lu XZ*, Design-condition-informed shear wall layout design based on graph neural networks, Advanced Engineering Informatics, 2023, 58: 102190. DOI: 10.1016/j.aei.2023.102190.
Fei YF, Liao WJ, Lu XZ*, Taciroglu E, Guan H, Semi-supervised learning method incorporating structural optimization for shear-wall structure design using small and long-tailed datasets, Journal of Building Engineering, 2023, DOI：10.1016/j.jobe.2023.107873
Liao WJ, Lu XZ*, Fei YF, Gu Y, Huang YL, Generative AI design for building structures, Automation in Construction, 2024, 157: 105187. DOI: 10.1016/j.autcon.2023.105187
Zhao PJ, Liao WJ, Huang YL, Lu XZ*, Beam layout design of shear wall structures based on graph neural networks, Automation in Construction, 2024, 158: 105223. DOI: 10.1016/j.autcon.2023.105223
Qin SZ, Liao WJ*, Huang SN, Hu KG, Tan Z, Gao Y, Lu XZ, AIstructure-Copilot: assistant for generative AI-driven intelligent design of building structures, Smart Construction, 2024, DOI: 10.55092/sc20240001
