AIstructure-Copilot-v0.1.5：自动生成YJK/PKPM建模文件

0

内容提要

发布了从AIstructure自动生成YJK/PKPM建模文件的功能，可实现从CAD的AIstructure中直接导出YJK/PKPM的建模文件，用YJK/PKPM软件便可打开结构分析计算模型。

产品下载网址：https://ai-structure.com/#/IntelligentDesign

1

AIstructure-Copilot直接输出结构模型

1.1 结构模型文件

很多工程师和我们联系，说虽然AIstructure可以很快完成结构设计，但是基于AIstructure的设计结果建立结构计算模型仍不够方便。此前，我们提供了一套Python的开源代码，可将AIstructure-Copilot输出的剪力墙-梁建模信息JSON文件转化为结构计算模型。

但是使用这个代码还需要安装Python程序并配置各种执行环境，对结构工程师不够友好。

因此，我们本次更新，实现了直接将JSON建模文件转化为不同版本软件均可打开的模型文件。YJK的模型文件为.ymd文件，双击.ymd文件可直接打开；PKPM为.jwd文件，则需要打开PKPM软件，新建一个空白模型文件，然后导入.jwd文件。

注：目前仅实现了1个标准层剪力墙和梁构件的自动建模，后续我们将会持续完善。

以下是9个典型案例，经过测试，目前AIstructure可以有效生成大部分常规剪力墙结构的模型文件。

1.2 补充说明

目前得到的标准层剪力墙-梁模型还无法直接进行计算，还需要进行楼板生成、荷载施加、楼层组装等系列操作。

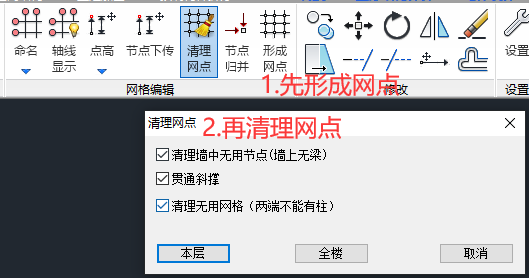

注意，YJK/PKPM模型，在楼板生成前，请先执行“形成网点”、“清理网点”的操作，可以更有效的生成楼板。

2

结语

我们增加了从AIstructure中直接输出YJK/PKPM模型的功能，实现了AIstructure设计后，直接可以得到在YJK和PKPM软件中打开的模型文件，并且可有效兼容多个软件版本。

后续，我们还将尽快在网页版中更新相关设计技术。欢迎大家持续关注我们的工作，多多支持！

温馨提示：为更好使用AI设计工具，请仔细阅读使用说明书。

3

致谢

感谢YJK和PKPM团队专家对于输出模型文件的介绍和指导！

联系方式

QQ群，AI-structure-交流群：741840451

廖文杰：[email protected]

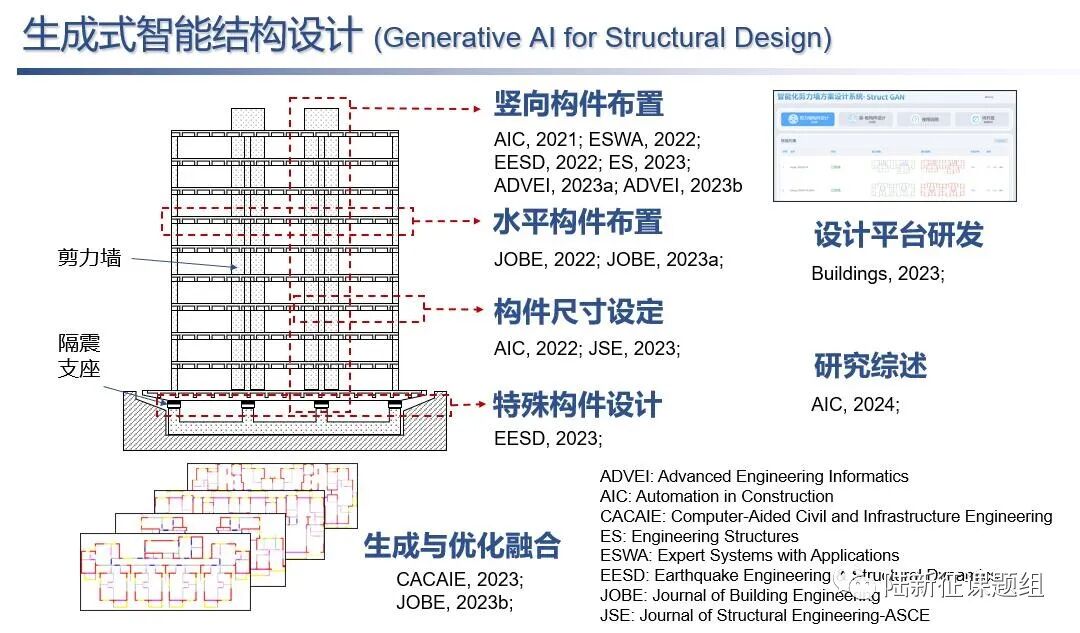

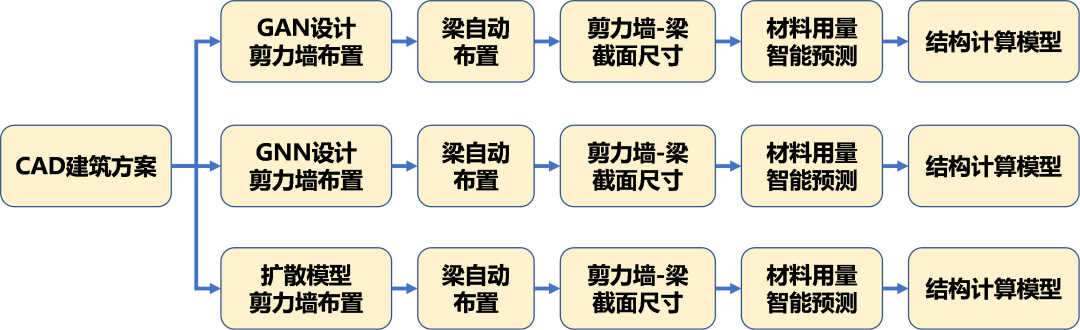

相关论文

1. Liao WJ, Lu XZ, Huang YL, Zheng Z, Lin YQ, Automated structural design of shear wall residential buildings using generative adversarial networks, Automation in Construction, 2021, 132, 103931. DOI: 10.1016/j.autcon.2021.103931.


2. Lu XZ, Liao WJ, Zhang Y, Huang YL, Intelligent structural design of shear wall residence using physics-enhanced generative adversarial networks, Earthquake Engineering & Structural Dynamics, 2022, 51(7): 1657-1676. DOI: 10.1002/eqe.3632.


3. Zhao PJ, Liao WJ, Xue HJ, Lu XZ, Intelligent design method for beam and slab of shear wall structure based on deep learning, Journal of Building Engineering, 2022, 57: 104838. DOI: 10.1016/j.jobe.2022.104838.

4. Liao WJ, Huang YL, Zheng Z, Lu XZ, Intelligent generative structural design method for shear-wall building based on “fused-text-image-to-image” generative adversarial networks, Expert Systems with Applications, 2022, 118530, DOI: 10.1016/j.eswa.2022.118530.

5. Fei YF, Liao WJ, Zhang S, Yin PF, Han B, Zhao PJ, Chen XY, Lu XZ, Integrated schematic design method for shear wall structures: a practical application of generative adversarial networks, Buildings, 2022, 12(9): 1295. DOI: 10.3390/buildings1209129.

6. Fei YF, Liao WJ, Huang YL, Lu XZ, Knowledge-enhanced generative adversarial networks for schematic design of framed tube structures, Automation in Construction, 2022, 144: 104619. DOI: 10.1016/j.autcon.2022.104619.

7. Zhao PJ, Liao WJ, Huang YL, Lu XZ, Intelligent design of shear wall layout based on attention-enhanced generative adversarial network, Engineering Structures, 2023, 274, 115170. DOI: 10.1016/j.engstruct.2022.115170.

8. Zhao PJ, Liao WJ, Huang YL, Lu XZ, Intelligent beam layout design for frame structure based on graph neural networks, Journal of Building Engineering, 2023, 63, Part A: 105499. DOI: 10.1016/j.jobe.2022.105499.

9.  Zhao PJ, Liao WJ, Huang YL, Lu XZ, Intelligent design of shear wall layout based on graph neural networks, Advanced Engineering Informatics, 2023, 55, 101886, DOI: 10.1016/j.aei.2023.101886

10. Liao WJ, Wang XY, Fei YF, Huang YL, Xie LL, Lu XZ*, Base-isolation design of shear wall structures using physics-rule-co-guided self-supervised generative adversarial networks, Earthquake Engineering & Structural Dynamics, 2023, DOI:10.1002/eqe.3862.

11. Feng YT, Fei YF, Lin YQ, Liao WJ, Lu XZ, Intelligent generative design for shear wall cross-sectional size using rule-Embedded generative adversarial network, Journal of Structural Engineering-ASCE, 2023, 149(11). 04023161. DOI:10.1061/JSENDH.STENG-12206.

12. Fei YF, Liao WJ, Lu XZ*, Guan H*, Knowledge-enhanced graph neural networks for construction material quantity estimation of reinforced concrete buildings, Computer-Aided Civil and Infrastructure Engineering, 2023, DOI: 10.1111/mice.13094.

13. Zhao PJ, Fei YF, Huang YL, Feng YT, Liao WJ, Lu XZ*, Design-condition-informed shear wall layout design based on graph neural networks, Advanced Engineering Informatics, 2023, 58: 102190. DOI: 10.1016/j.aei.2023.102190.

14. Fei YF, Liao WJ, Lu XZ*, Taciroglu E, Guan H, Semi-supervised learning method incorporating structural optimization for shear-wall structure design using small and long-tailed datasets, Journal of Building Engineering, 2023, DOI：10.1016/j.jobe.2023.107873

15. Liao WJ, Lu XZ*, Fei YF, Gu Y, Huang YL, Generative AI design for building structures, Automation in Construction, 2024, 157: 105187. DOI: 10.1016/j.autcon.2023.105187
