AI-structure Copilot兼容中望CAD

陆新征课题组

2025年11月20日 21:47

引言

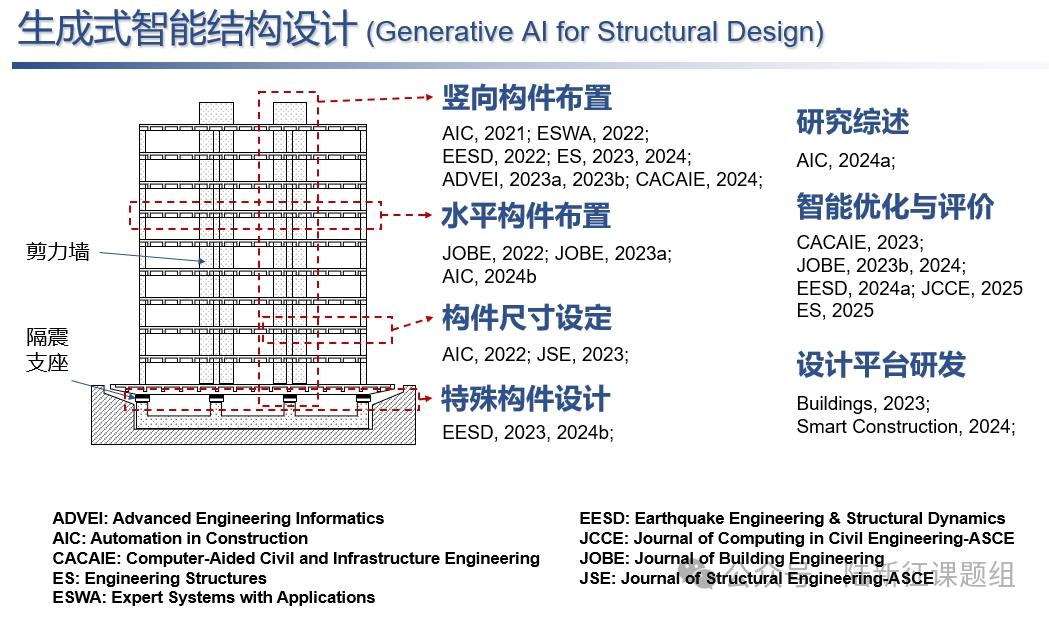

为了响应国家工业软件自主可控政策，我们推出专为中望CAD打造的AI助手AI-structure Copilot！无论您使用AutoCAD还是中望CAD，都能享受智能结构设计带来的革命性体验，欢迎工程师广泛试用！

AI-structure Copilot中望CAD版本

我们根据中望CAD的配置环境、接口命名空间和程序集对照表对AI-structure Copilot的相关程序代码进行调整，完成了AI-structure Copilot适配中望CAD的开发工作，软件下载地址：

https://ai-structure.com/#/IntelligentDesign

安装AI-structure Copilot后，中望CAD的菜单栏中会增加“HEMU AI-structure”选项，如图1所示。“HEMU AI-structure“菜单栏中的具体选项与Auto CAD中的一样，用户可以采用同样的设计流程，即可完成智能设计。

图1 中望CAD中的HEMU AI-structure菜单栏

中望CAD图纸的智能设计效果

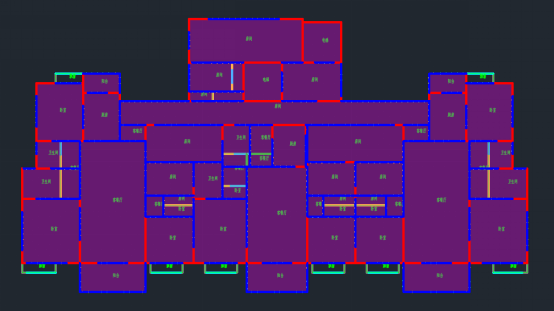

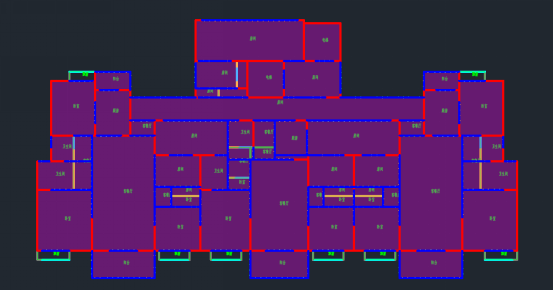

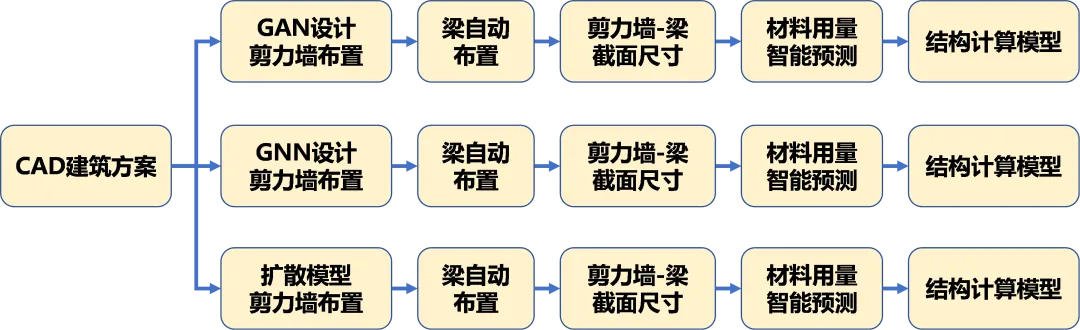

在中望CAD中对建筑平面图（如图2所示）开展智能设计，耗时3分钟，软件完成智能设计，结果如图3所示。可以看出，AI-structure Copilot可以很好的识别出中望CAD图纸中的构件和建筑空间等信息，并可以很好的完成智能设计，将设计结果返回到中望CAD软件中。

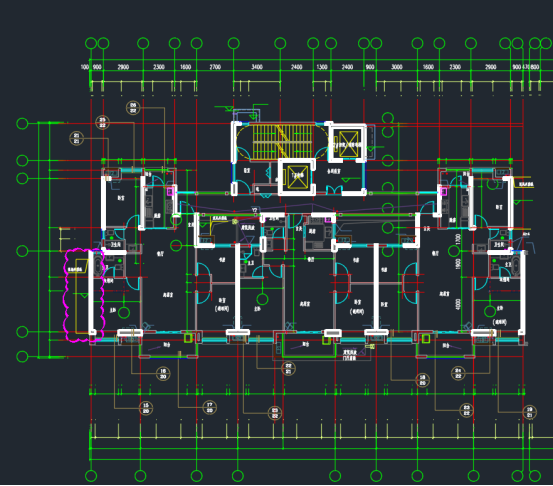

图2 中望CAD绘制的建筑平面图

（a）算法A

（b）算法B

（c）算法C

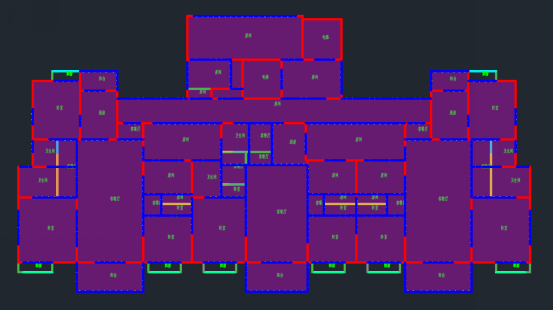

图3 智能设计结果

结语

AI-structure Copilot实现了AutoCAD/中望CAD双端支持，为用户提供更加多样化的选择。欢迎大家对我们的AI-structure Copilot进行试用，并多多提供意见和建议。

后续，我们还将不断完善相关产品功能。欢迎大家持续关注我们的工作，多多支持！

温馨提示：为更好使用AI设计工具，请仔细阅读使用说明书(https://ai-structure.com)。

--End--
