引言

亲爱的新老朋友们，新春佳节之际，先给大家拜个早年，祝大家新的一年工作顺利，万事如意！

幸福团圆 · 喜迎年味

在这举家团圆的日子里，我们也带给大家一个好消息，AI-structure Copilot再次突破创新，全新功能上线——建筑平面布置，为您的设计工作带来全新的便捷与高效！该功能可根据用户给定的建筑外轮廓和房间数量的需求，智能生成合理的平面布置方案，旨在帮助设计师快速完成初步设计，大幅提升工作效率。

我们的建筑平面布置产品包括“HouseMind：建筑户型平面生成与编辑平台”和“ChatHouseDiffusion：建筑户型平面生成与3D展示平台”两套全新算法。本期将介绍“HouseMind：建筑户型平面生成与编辑平台”，下一期内容将聚焦于“建筑户型平面生成与3D展示平台”。

HouseMind操作演示视频（一分钟）

1. "HouseMind：建筑户型平面生成与编辑平台"上线

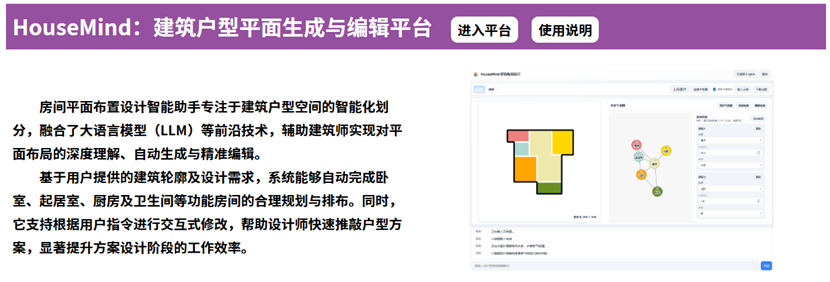

官网 (https:// ai-structure.com/#/IntelligentDesignLabs) 已上线新产品——HouseMind：建筑户型平面生成与编辑平台（图1）。该产品专注于建筑户型空间的智能化划分，融合了大语言模型（LLM）等前沿技术，辅助建筑师实现对平面布局的深度理解、自动生成与精准编辑。

图1 建筑户型平面生成与编辑平台

“建筑户型平面生成与编辑平台”基于用户提供的建筑轮廓及设计需求，系统能够自动完成卧室、起居室、厨房及卫生间等功能房间的合理规划与排布。同时，它支持根据用户指令进行交互式修改，帮助设计师快速推敲户型方案，显著提升方案设计阶段的工作效率。

2. HouseMind 使用介绍

2.1 软件界面介绍

“建筑户型平面生成与编辑平台”系统界面主要分为系统工具栏、顶部工具栏、可视化工作区、逻辑编辑区和对话交互区五个部分，如图2所示。

图2 操作界面

（1）系统工具栏：可切换语言（中文/English）和主题颜色（黑夜/白天）。

（2）顶部工具栏：可通过左侧“生成”和“编辑”两个主要选项卡进行功能模式切换；同时，可通过右侧功能按键完成上传图片、手动绘制外轮廓（按照网格捕捉进行正交绘制）、载入示例和下载文件等操作。

（3）可视化工作区：用于显示当前的户型轮廓或生成的平面图，默认框定范围为14米×14米。

（4）逻辑编辑区：用于用户进行房间数量、功能、面积和逻辑关系等的设置，逻辑关系越清晰准确，生成的效果越好。其中，关系气泡图以可视化气泡形式展示房间及其连接关系，用户可以拖动房间位置来设置和调整房间之间的关系；房间列表可以详细设置每个房间的类型、面积和方位。

（5）对话交互区：用户可以输入自然语言指令，与 AI 进行交互。

2.2 设定建筑外轮廓

用户可以通过两种方式设定建筑外轮廓，如图3所示。

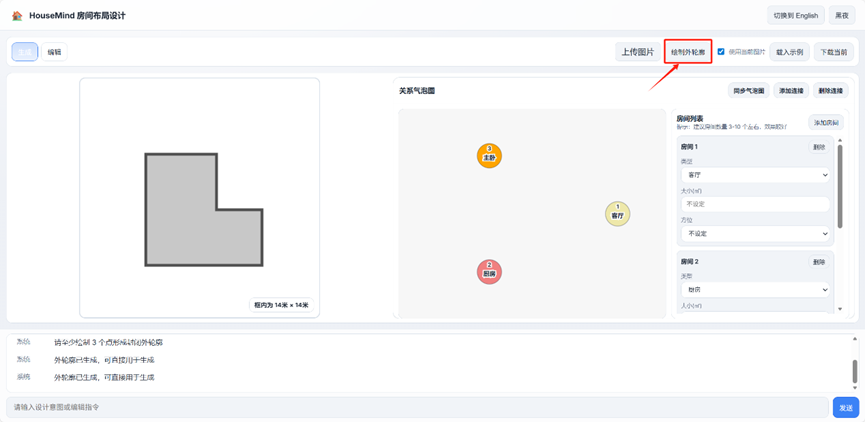

方法一：用户点击 “绘制外轮廓” 按钮，在左侧画布上点击鼠标定点，绘制封闭的多边形。

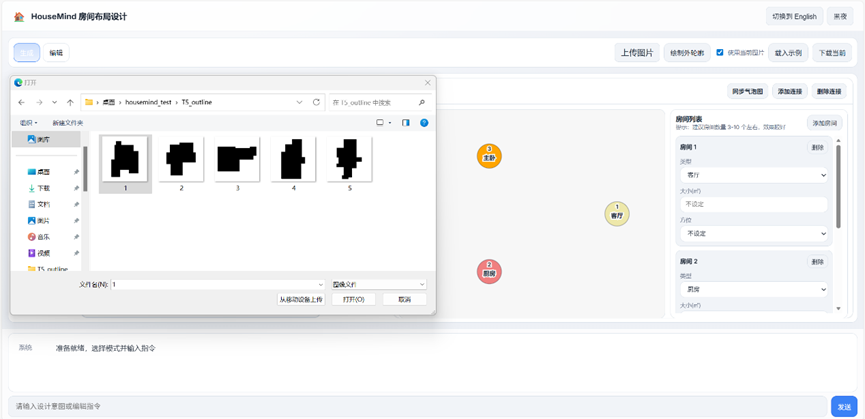

方法二：用户点击 “上传图片” 或直接拖拽一张黑色轮廓图到画布区域。

（a）绘制外轮廓

（b）上传图片

图3 设定建筑外轮廓

2.3 指定房间数量和连通关系

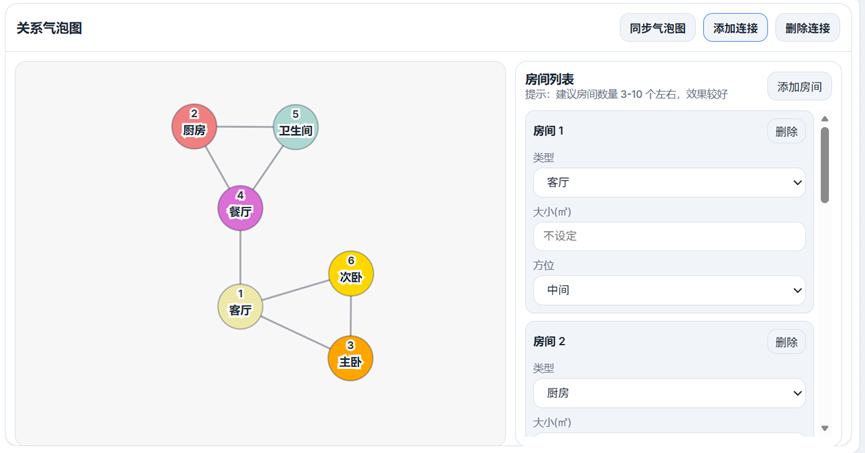

用户可以在逻辑编辑区添加房间，设定房间连接关系，并设定房间方位和大小，如图4所示。在这里分别设置了客厅、餐厅、主卧、次卧、厨房和卫生间六个房间类型。同时，用户可通过关系气泡图，利用”添加连接“和”删除连接“功能设置各个房间的连通关系。

图4 指定房间数量和连通关系

2.4 平面布置生成

用户完成建筑外轮廓设定、房间数量和连通关系设定后，点击发送按钮，即可完成建筑平面布置的生成，如图5所示。

图5 建筑平面布置生成

2.5 根据用户需求调整房间布局

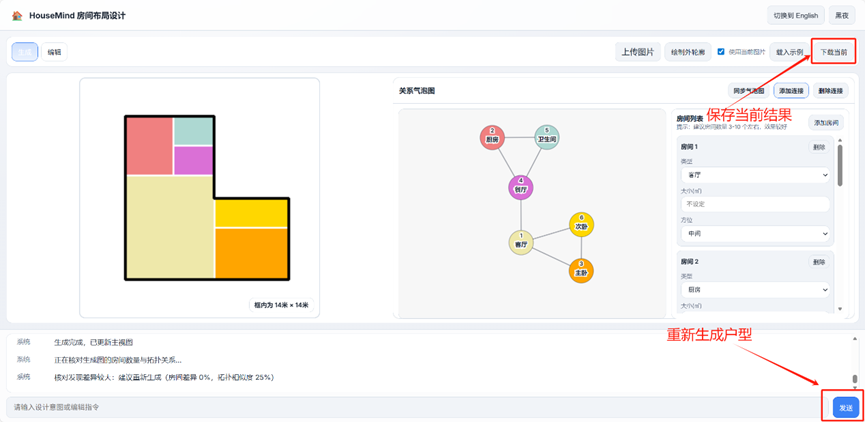

在完成平面布置生成后，用户可根据实际需要，通过“对话交互区”和“逻辑编辑区”对生成结果进行调整，通过调整得到符合自己要求的平面布局。

比如，针对图5已经生成的平面布置，首先点击同步气泡图，获取当前布局的拓扑关系，然后可以通过下面两种方式指挥AI开展工作，如图6所示。

调整方式一（整体修改）：保持“生成”模式，在右侧列表中修改房间属性（如将“次卧”改为“书房”，将“厨房”面积改小），或在气泡图中增删连线。

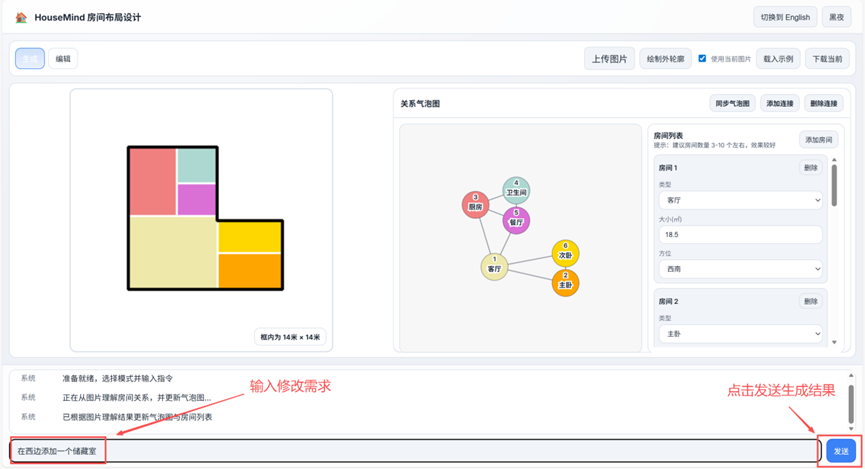

调整方式二（局部修改）：点击“编辑”按钮进入编辑模式，在右侧列表中修改房间属性或在底部输入指令。

（a）通过“逻辑编辑区”整体修改设计结果

（b）通过“对话交互区”局部修改生成结果

图6 根据用户需求调整房间布局

结语

AI-structure Copilot新增建筑平面智能设计功能，旨在帮助您高效完成建筑平面布置。我们诚邀各位用户访问官网进行试用！

后续，我们还将不断完善相关产品功能。欢迎大家持续关注我们的工作，多多支持！

温馨提示：为更好地使用AI设计工具，请仔细阅读使用说明书

联系方式：

用户交流QQ群

AI-structure-交流1群：741840451

AI-structure-交流2群：1053974604

商务问题请联系

黄盛楠：[email protected]

技术问题请联系

廖文杰：[email protected]

--End--
